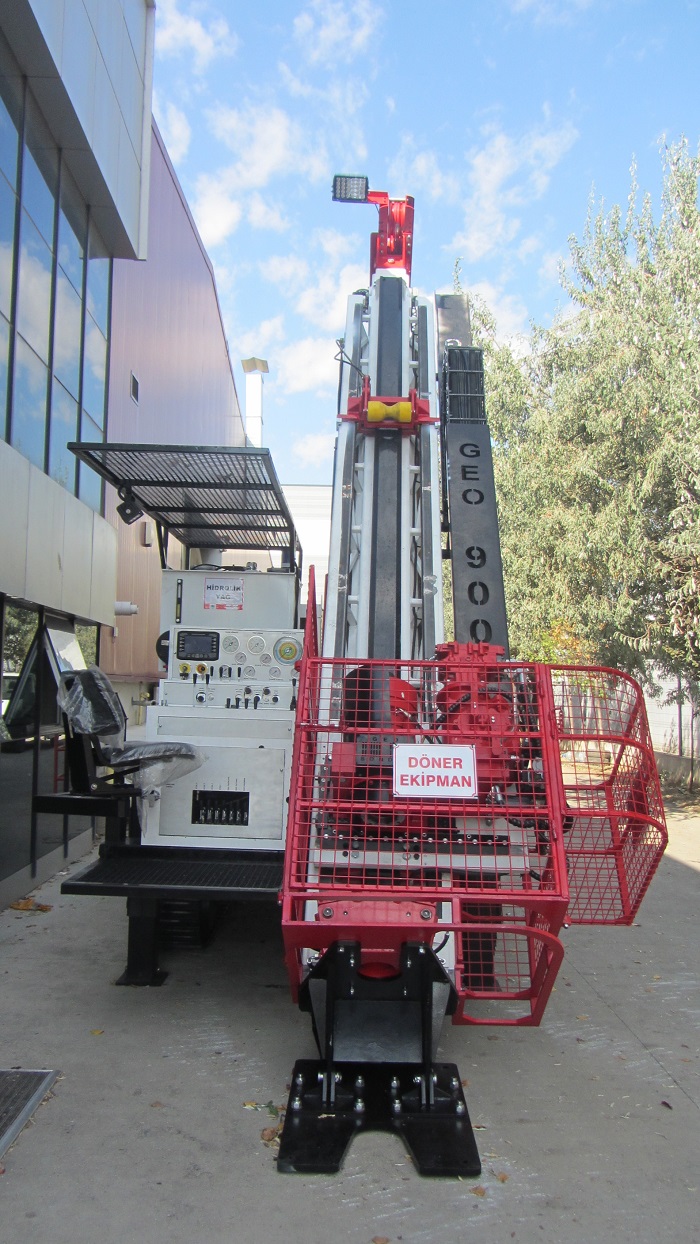

Depth Capacities

	Dry Hole (m)*	Wet Hole (m)*
PWL	1.000	1.100
HWL	1.500	1.650
NWL	2.200	2.400

(*) Depth capacity is given according to standard QWL rods. Depth capacity might be increased while using the rods which have light weight V-wall or different thread design.

 Power Unit (107 cc)

	1. Option	2. Option
MFG	Cummins (@2200 RPM)	Ford (@2000 RPM)
Model	6CTA 8.3 – C260II	9E33
Power (2300 RPM)	194 kW (260 HP)	243 kW (330 HP)
Engine Type	Diesel Turbo charged and intercooler	Diesel Turbo charged and intercooler
Cooling	Water	Water

Our standard production includes Ford and Cummins engines. Upon request from different manufacturers such as Volvo, Deutz, and Iveco the delivery date may vary based on the engine delivery date.

Torque & RPM Rating

Extreme duty gear driven head power by 4 speed transmission with hydraulic sliding.

Gear Ratio	Speed (RPM)	Torque (Nm)
1. 6.27:1	122 - 199	5.322 - 3.254
2. 3.12:1	246 - 400	2.648 - 1.620
3. 1.75:1	439 - 714	1.620 - 908
4. 1.00:1	714 - 1.250	849 - 519

Lubrication Unit

Hydraulically driven cooled oil circulation with 25 micron suction filter.

 Chuck Assembly

Type	7 Jaws - Hydraulic open, spring closed
Maximum Inside Diameter	120 mm (PWL)
Holding Capacity	19.000 kg

Hydraulic System (@1.600 RPM)

	Max. Flow Rate	Max. Pressure
Primary Pump	179 L/min	300 Bar
Second Pump	72 L/min	230 Bar
Auxiliary Pump	72 L/min	180 Bar
Mixer Gear Pump	32 L/min	60 Bar

Hydraulic Oil Cooling

Hydraulic and rotation oil are cooling by air.

Mast and Feed System

Drilling Angle	Vertical to 45 degree
Dump Stroke	2,20 m (According to mast axis)
Feed Travel	3,40 m
Telescopic Mast	3,30 m (Open and close by hydraulic feed cylinder)
Feed Speeds	Fast and slow with variable controls
Maximum Pull	16.000 kg
Maximum Push	12.500 kg

Standard 6 m pull, angel hole, telescopic mast for ease of set up, ST 52-3 profile.

Main Line Hoist

Capacity	18.000 kg (Single line)
Cable Size	21,5 m x 18,5 mm
Line Speed	Bare drum 35 m/min

Hydraulic driven planetary hoist.

Wireline Hoist

Capacity	2.000 m x 4,6 mm
Line Pull	Bare drum: 1.870 kg  Full drum: 545 kg
Line Speed	Bare drum: 138 m/min  Full drum: 474 m/min

Hydraulically driven with integral counter balance valves.

Rod Clamp

Capacity: 25.000 kg  Hydraulically powered N, H, P and S wireline rod jaw sizes.

Water Pump

Hydraulically driven 835 water/mud pump  Maximum Flow Rate : 35 gpm @ 800 psi

Mud Mixer (With Mud Mixing Tank)

Hydraulically driven mud mixer  Maximum Speed : 2.800 RPM

Weight

Crawler mounted weight : 11.500 kg

Drill Base Supports

Skid mounted or crawler, supports 4 hydraulic leveling jacks.

Lighting System

There are 4 LED lighting lamp on the mast.

Dimensions

7.200 mm,  2.570 mm,  2.230 mm

Warranty

1 year against faulty workmanship individual manufactures warranty on all components as per our terms and conditions of sale.

Options
